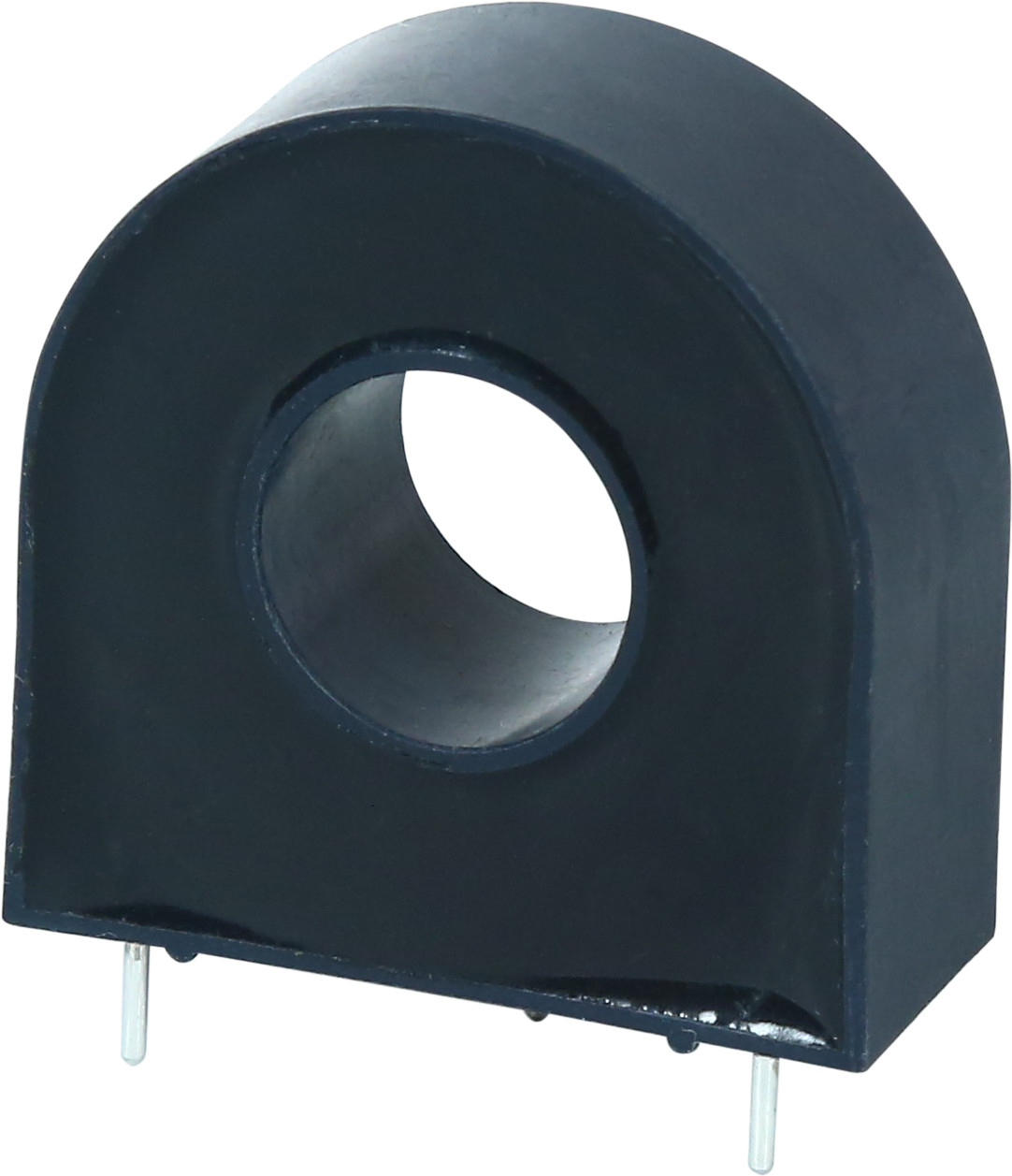

Current Transformers
- Customized Current Sense And Measurement Transformers .
- Available From 50 Hz To 500 KHz Operating Frequency Range
- Precise Turns Accuracy And Excellent Linearity
- Custom Designs With Inbuilt Primary Available
- Suitable For Broad Frequency Range
- Available In Encapsulated Designs With Vacuum Potting
- Constructed With All UL Listed Materials
- Available In Various Packaging Options – Foam Tray, Blister Tray, Blister Tubes
- Customized Designs Only

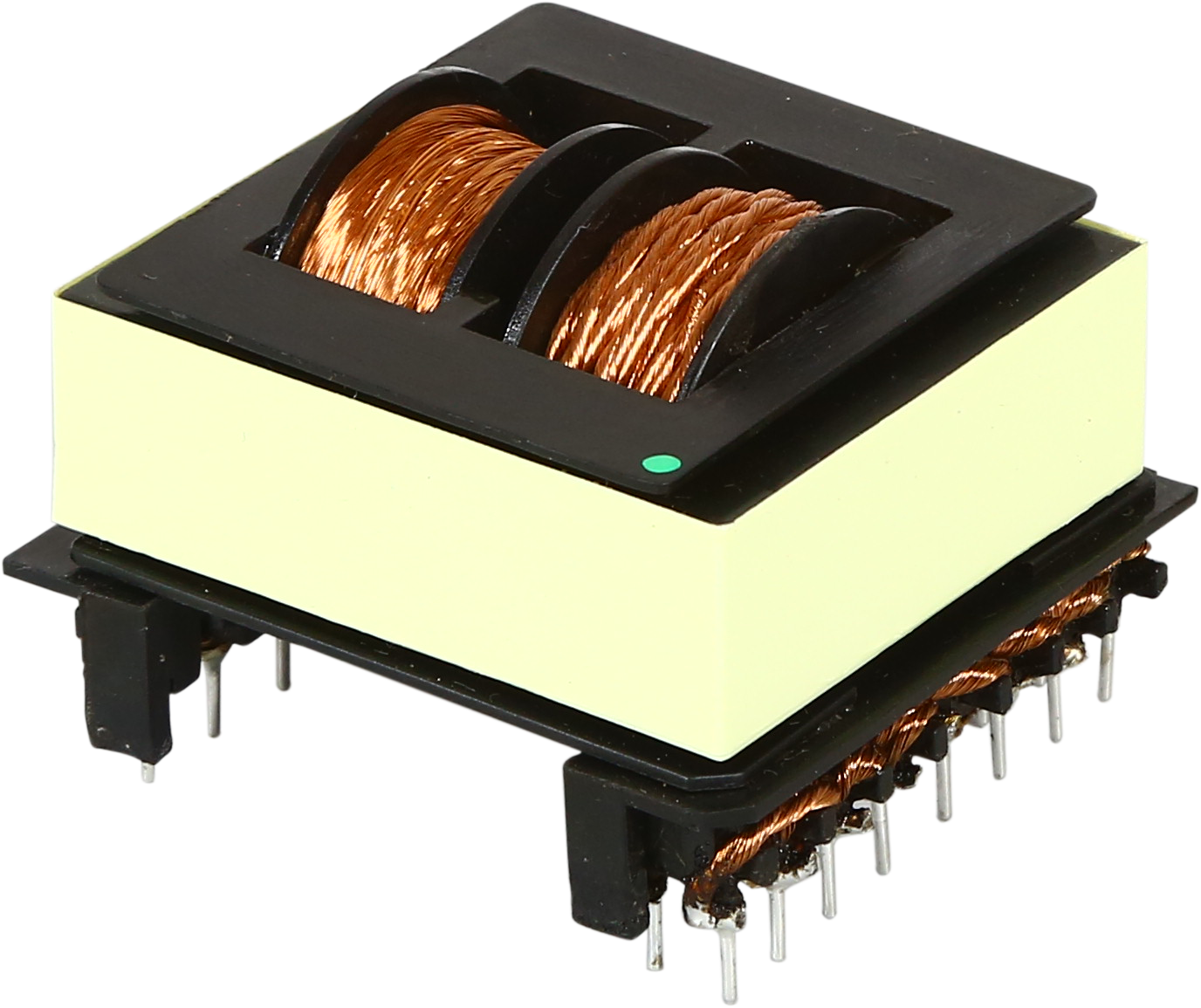

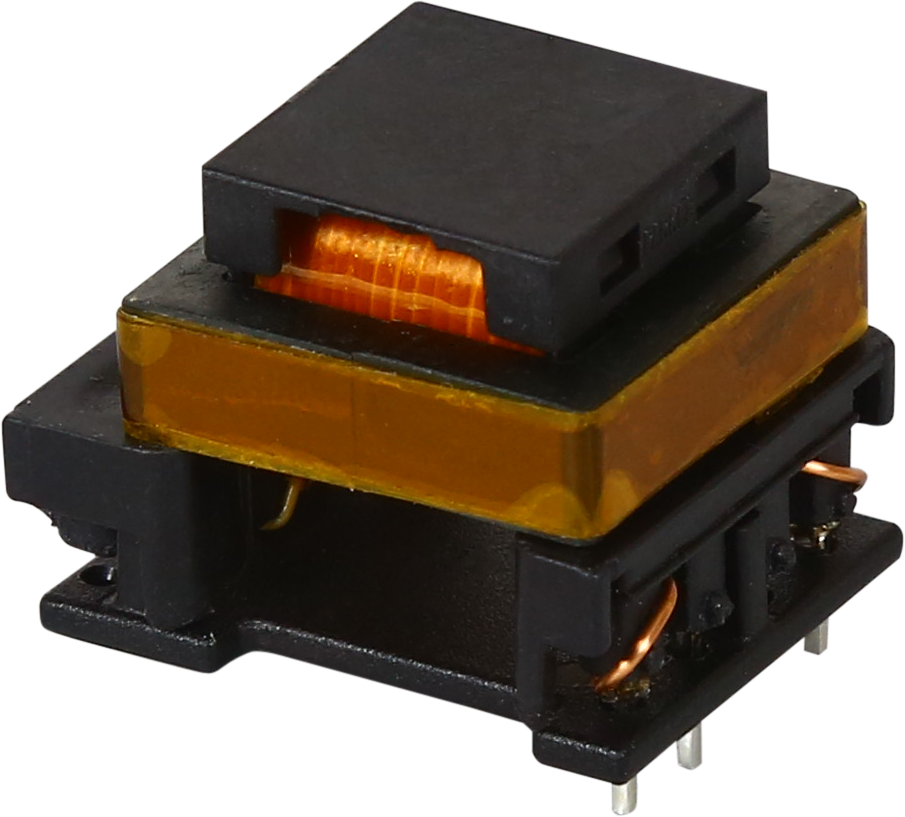

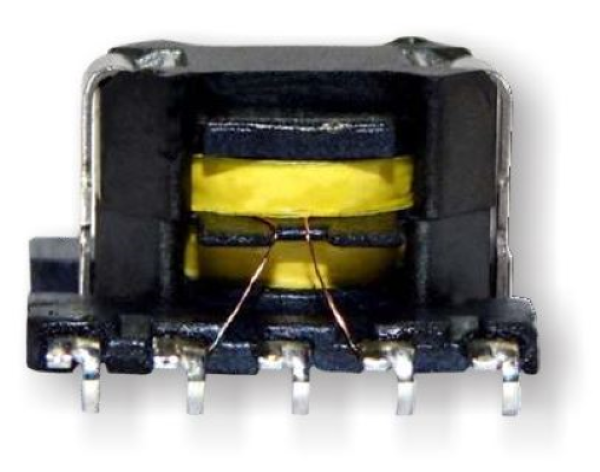

Transformers For Special Applications
- We Always Welcome New Challenges In Design Requirements From Our Customers.
- Special Switching Transformer For High Isolation Voltage In A Very Compact Design

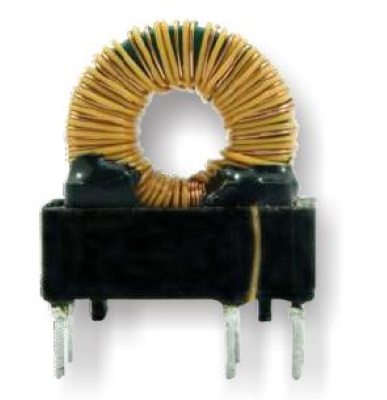

- Special Toroidal Transformer For Gate Driving Application In Online UPS System
- Special Switching Transformer For Thru-Hole Reflow (THR) Application

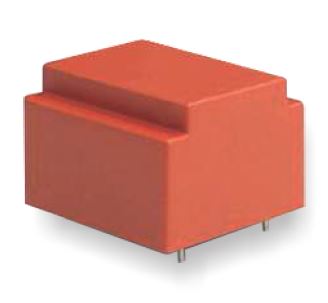

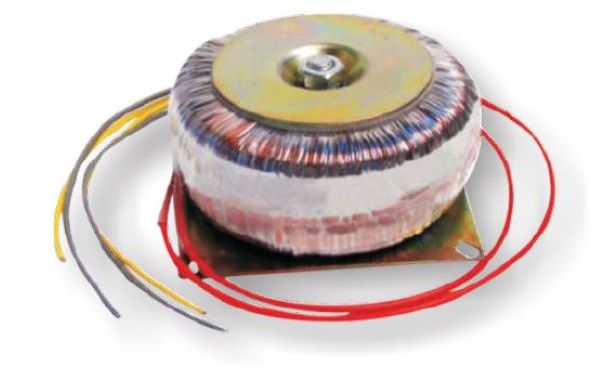

Mains Transformers (Toroidal And EI Steel Laminations)
- Customized Line Transformers For 50 / 60 Hz Application
- Optimal Design For Low Loss At No Load Conditions
- High Efficiency And Low Temperature Rise
- Available In Encapsulated Designs With Vacuum Potting
- Constructed With EN Safety Standards EN 61558-1
- Constructed With All UL Listed Materials
- Available In Various Packaging Options – Foam Tray, Blister Tray, Blister Tubes
- Customized Designs Only

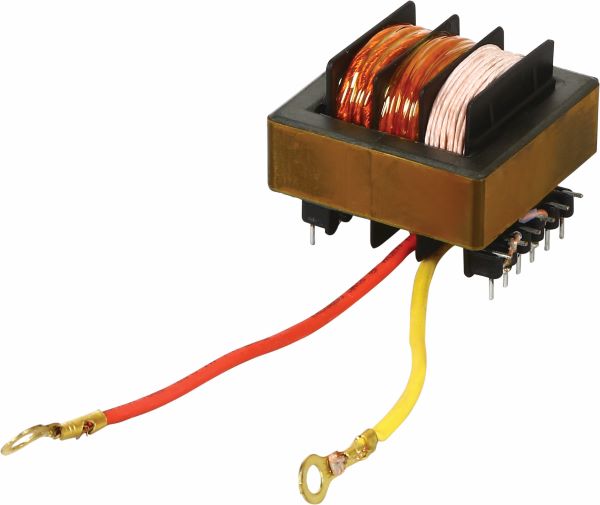

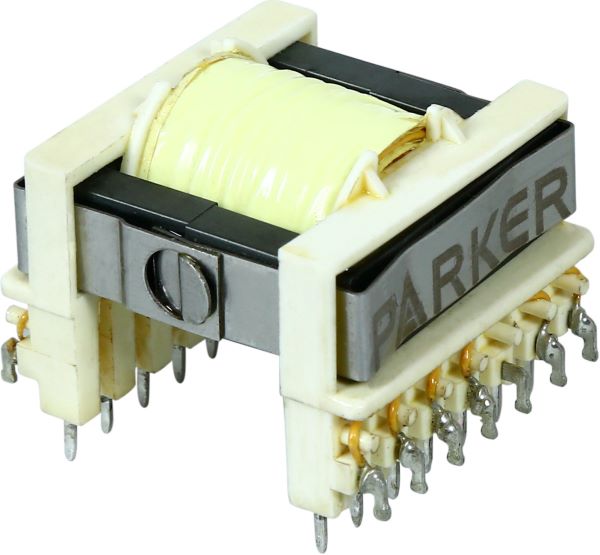

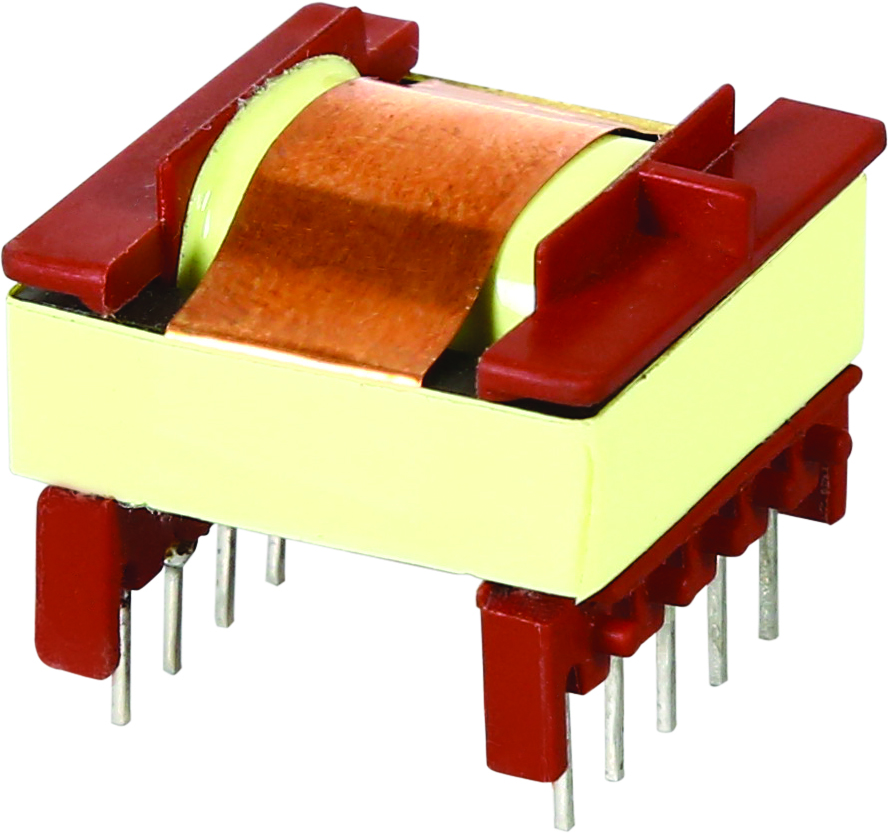

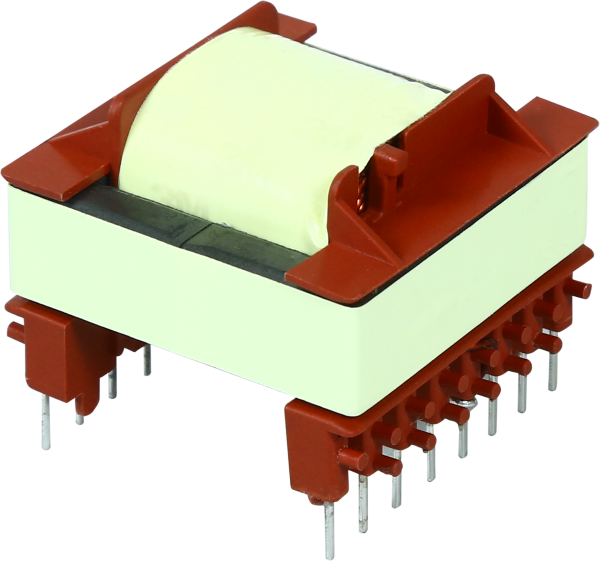

SMPS Transformers
- Customized For Forward, Flyback, Push-Pull, Half Bridge, Full Bridge And LLC Topologies
- Constructed In EE, EF, ETD, EFD, RM, PQ, EI, EER, EP, PM And Toroidal Geometries
- Operation Frequency Up To 200 KHz (higher Frequency Custom Design Also Available)
- Optimized For Low Leakage Inductance
- Custom Designed For Low Interwinding Capacitance
- Available In Basic Isolation, Safety Isolation And Reinforced Safety Isolation
- Constructed With EN Safety StandardEN 61558-1
- Available In Shield Windings For Improved EMC Performance
- Available In Encapsulated Designs With Vacuum Potting
- Available In Special Park Wire Winding Configurations For Improved EMC Performance
- Custom Designs Available With Extended Creepage Distance For Very High Voltage Isolation
- Impulse Winding Testing Available On Request
- Available In THT, THR, SMT Mounting Profiles
- Available In Various Packaging Options – Foam Tray, Blister Tray, Blister Tubes, Tape & Reel
- Constructed With All UL Listed Materials
- Customized Designs Only
