Customized Chokes

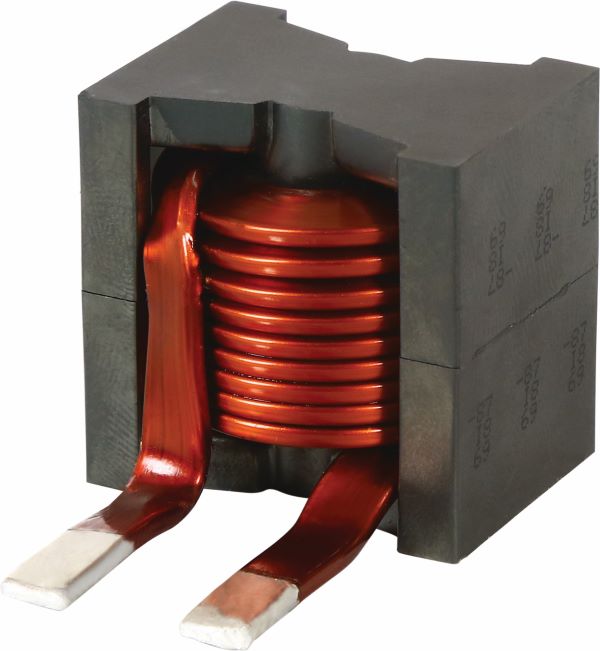

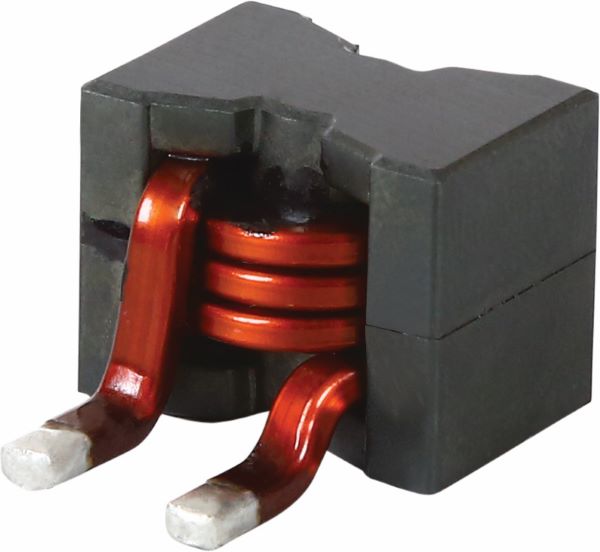

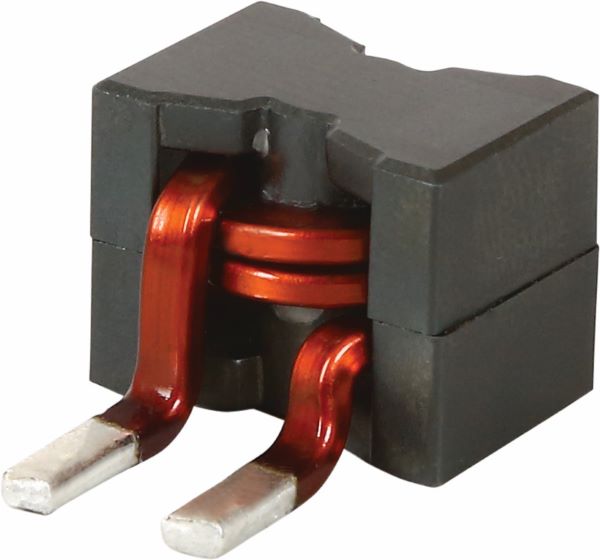

High Current Chokes

    • Available In Current Range Up To 200A
    • Frequency Range Up To 100 KHz
    • Designed For Desired Performance Under DC-Magnetization
    • Optimal Designing To Achieve Low Power Losses
    • Construction According To EN 61558-20
    • Available In Foil Winding And Edge Winding Designs
    • Available In Cut C Cores In Amorphous Material Or Si-Fe Material And In Low Loss Ferrites
    • Also Available In Encapsulated Designs
    • All Used Plastic Material Is UL 94V-0
    • Used As Storage Choke Or Smoothening Inductor In Power Electronics, Frequency Converters, Buck And Boost Converters
    • Available In Various Packaging Options – Foam Tray, Blister Tray, Blister Tubes
    • Customized Designs Only

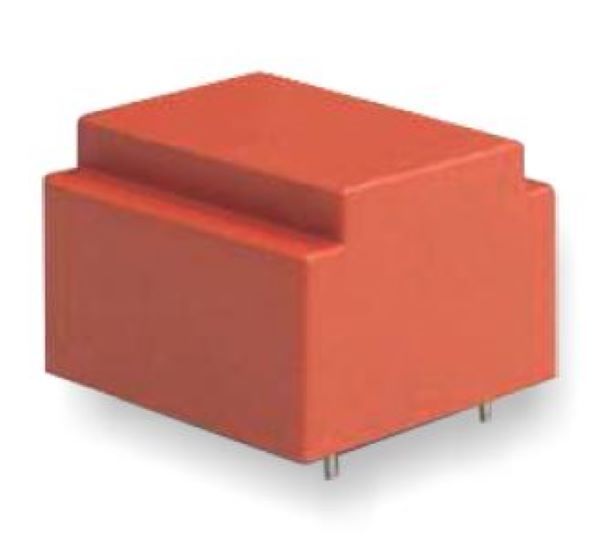

Passive PFC Chokes

    • Mains Choke Series To Optimize The EMC Characteristics Of Your Application, In Compliance With The Latest Standards.
    • Available In Wide Range Of Inductance Values
    • Designed For Optimal Inductance Response At DC Bias Current Loads
    • Construction Compliant With EN 61558-2-20
    • Available In UL Class F Insulation System
    • Designed In High Quality Low Loss EI Steel Laminations
    • Encapsulated Designs - Potted Under Vacuum
    • Available In Various Packaging Options – Foam Tray, Blister Tray, Blister Tubes
    • Customized Designs Only

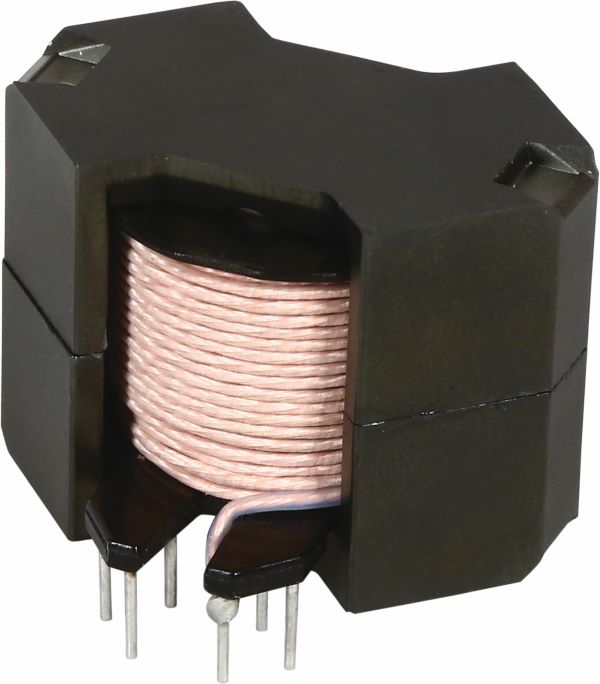

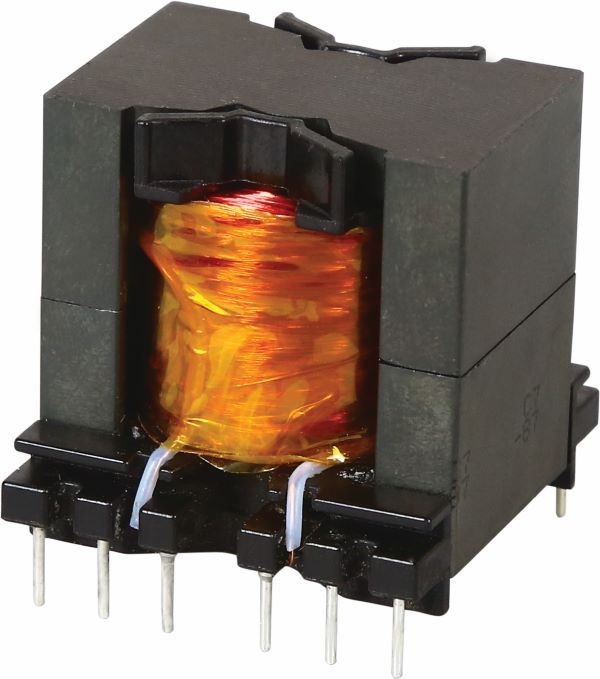

Active PFC Chokes

    • Designed For Active Power Factor Correction Circuits.
    • Suitable For Various Topologies - Discontinuous Conduction Mode And Continuous Conduction Mode
    • Toroidal Design For Low Leakage Flux And High Saturation Currents
    • Winding Tuned For Low Parasitic Capacitance
    • Suitable For Broad Frequency Range
    • Special Low Loss Core Materials Enables Low Losses And Low Heating Effect
    • Available In Toroidal, PQ And RM Profile
    • Available In Various Packaging Options – Foam Tray, Blister Tray, Blister Tubes
    • Customized Designs Only

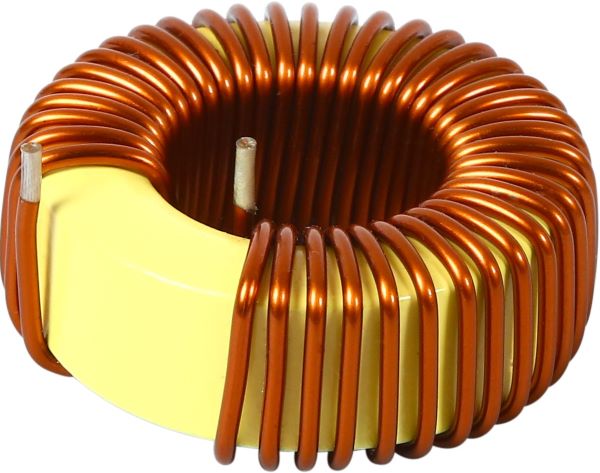

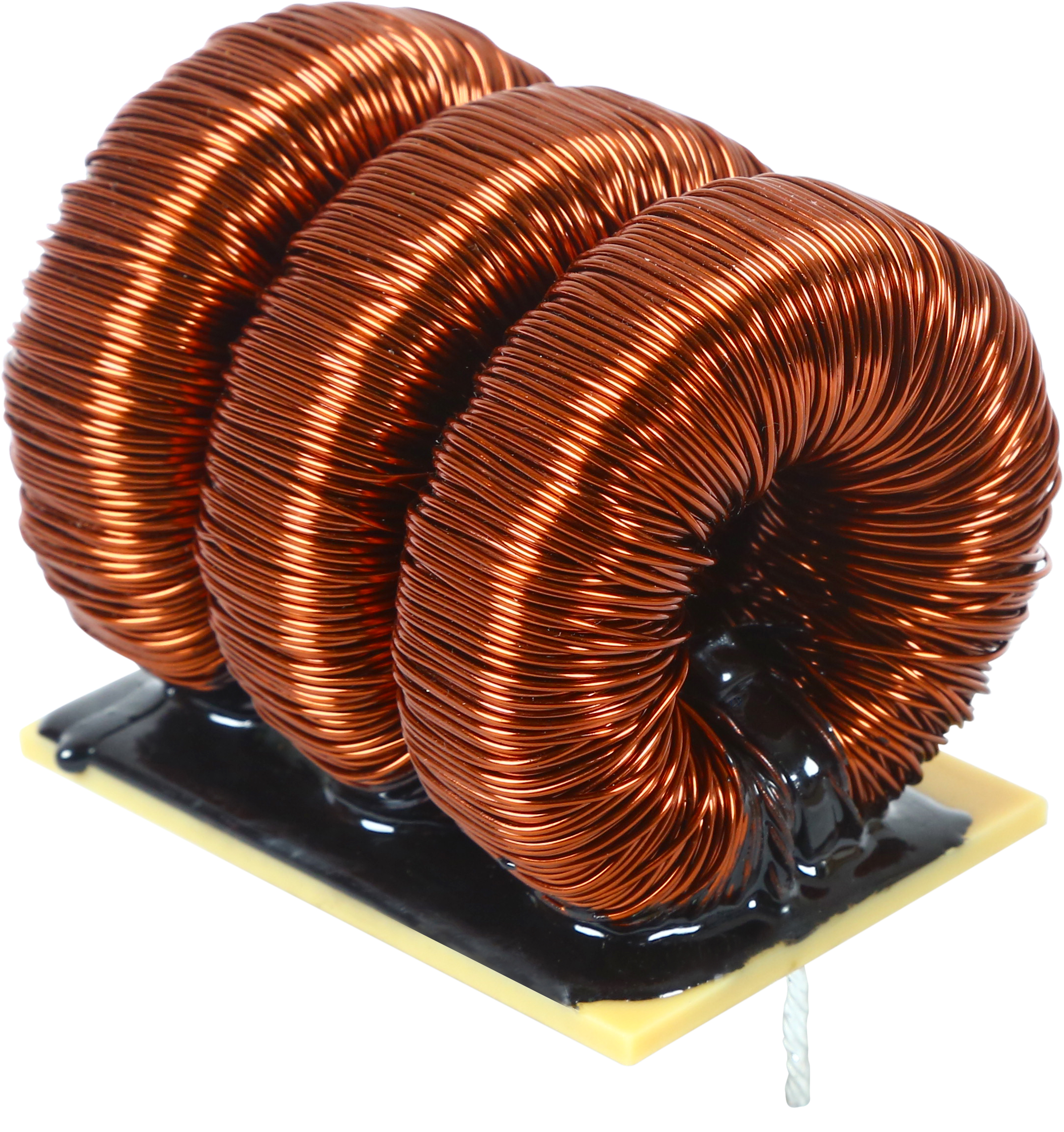

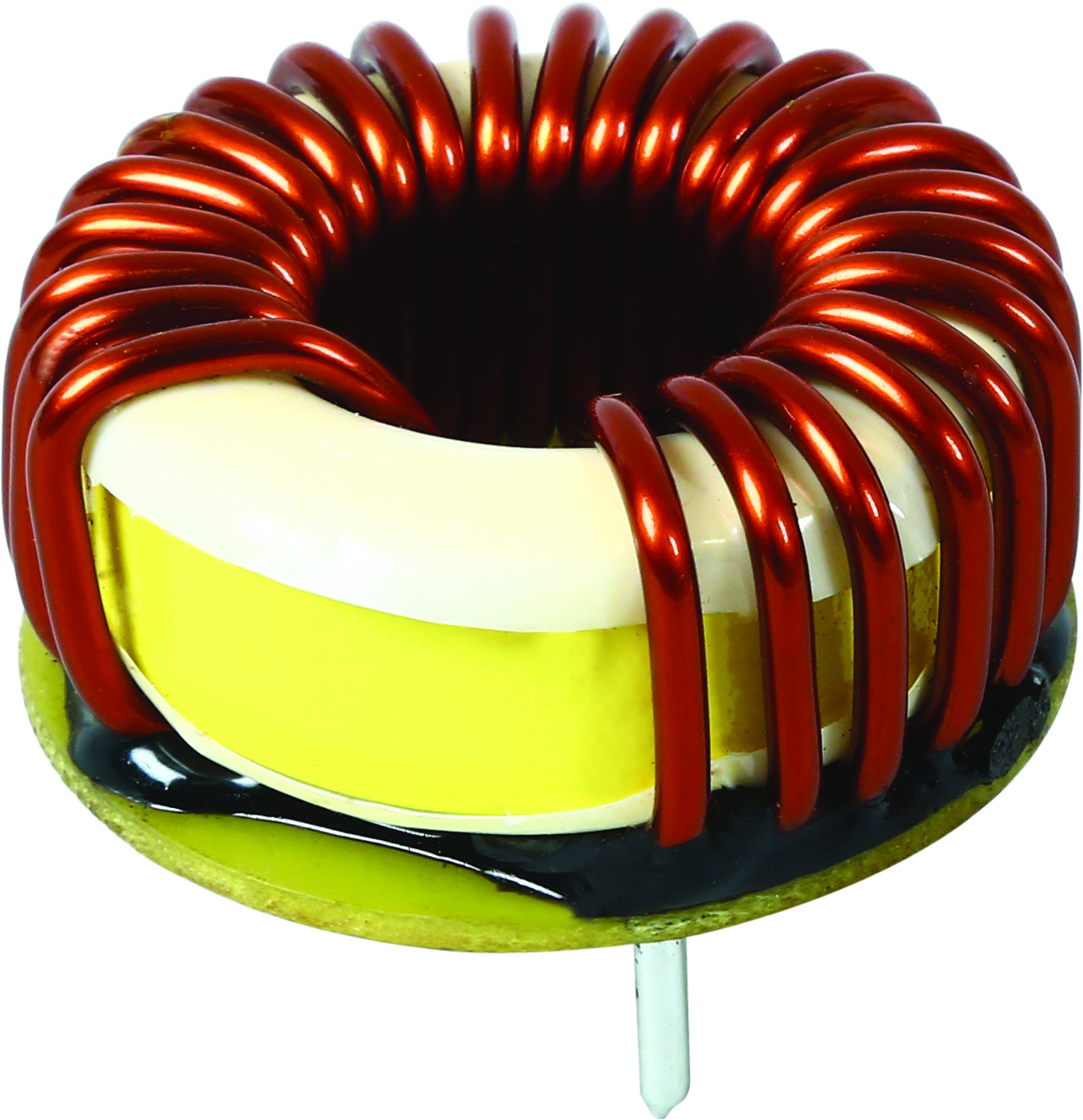

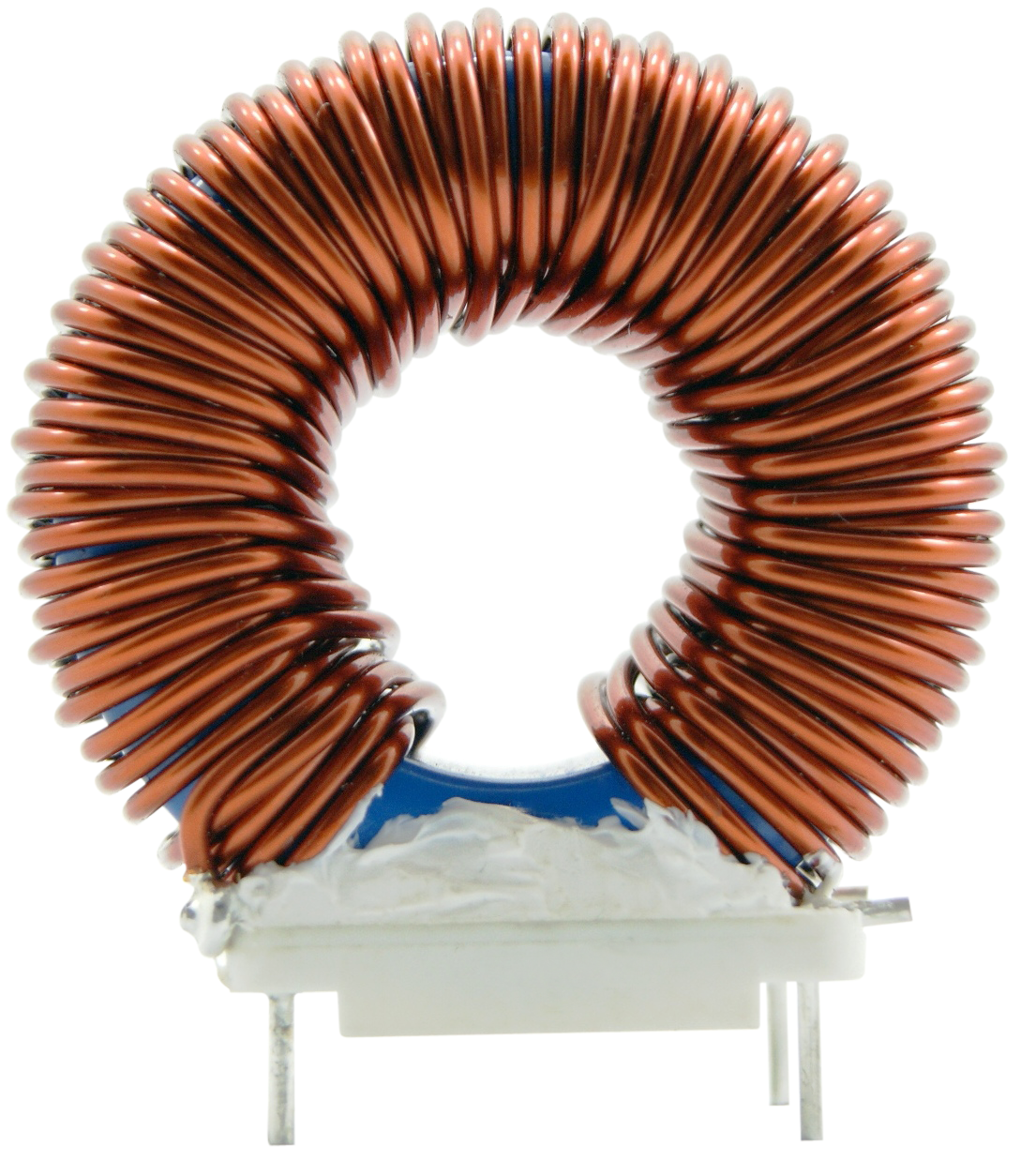

Storage Chokes

    • Low Magnetic Stray Field
    • Low Core Loss Due To Special Core Materials
    • Available For Rated Current 0.5 A To 30 A
    • Used In Switching Power Supplies And Converters
    • Construction In Accordance To EN 61558-1
    • Available In Various Packaging Options – Foam Tray, Blister Tray, Blister Tubes
    • Customized Designs Only

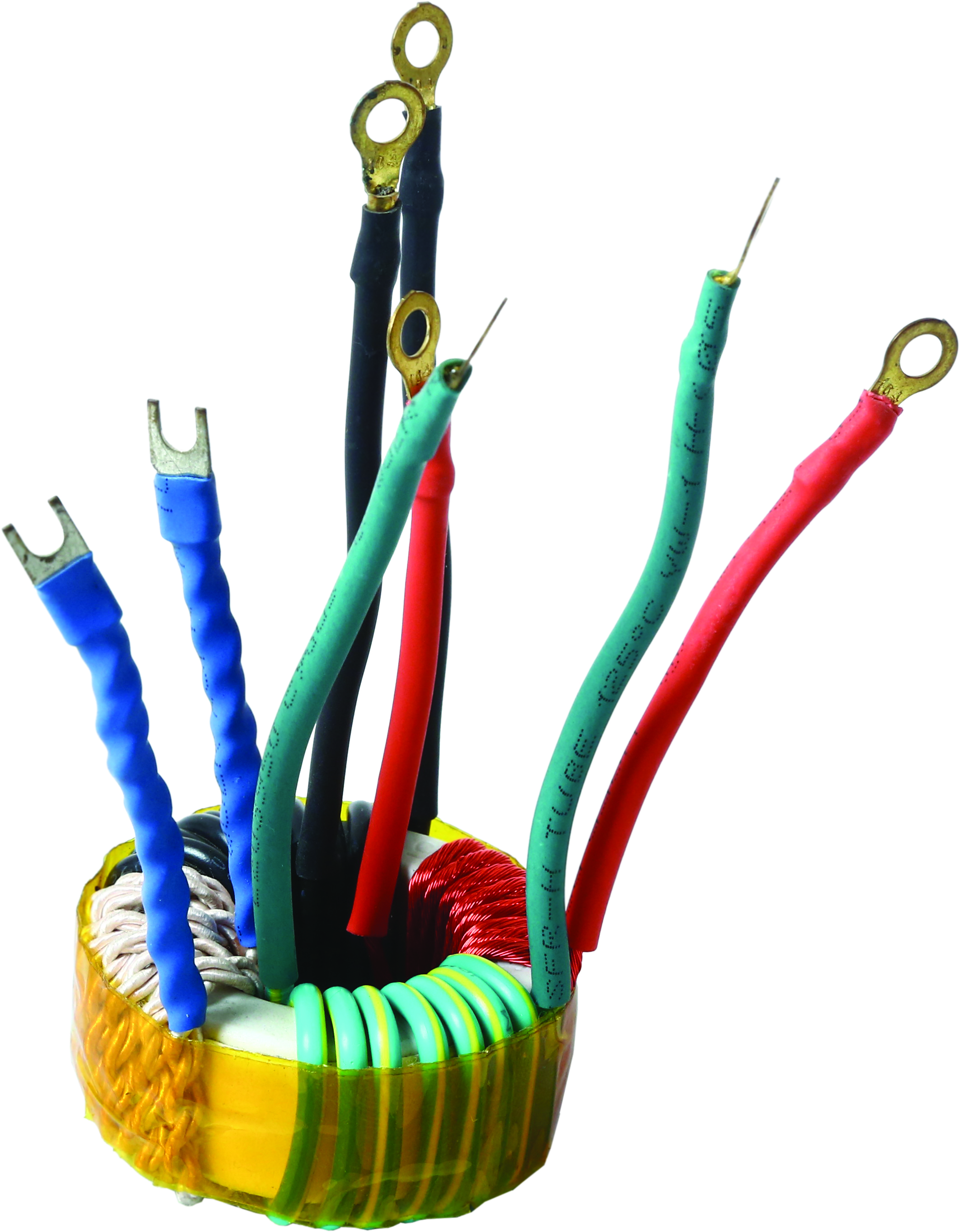

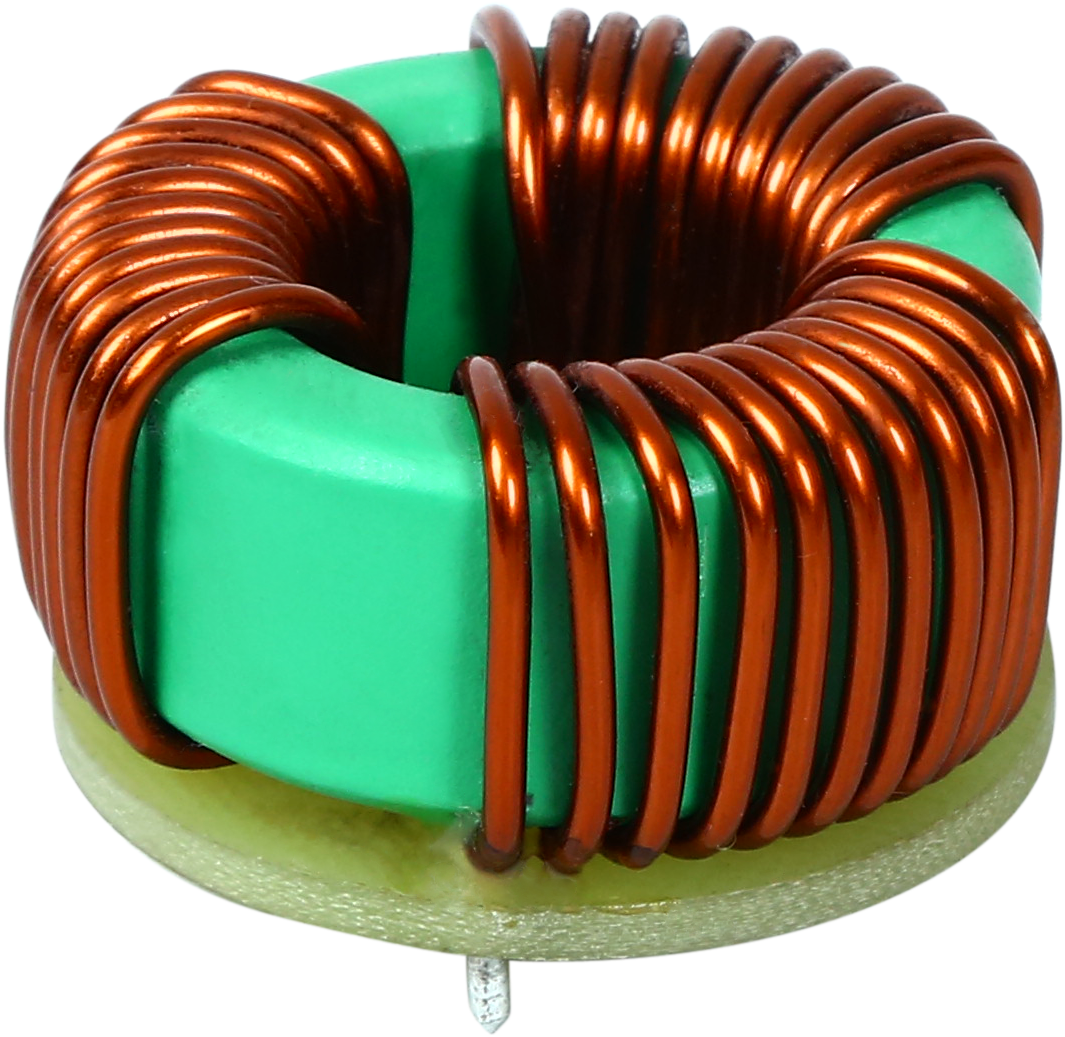

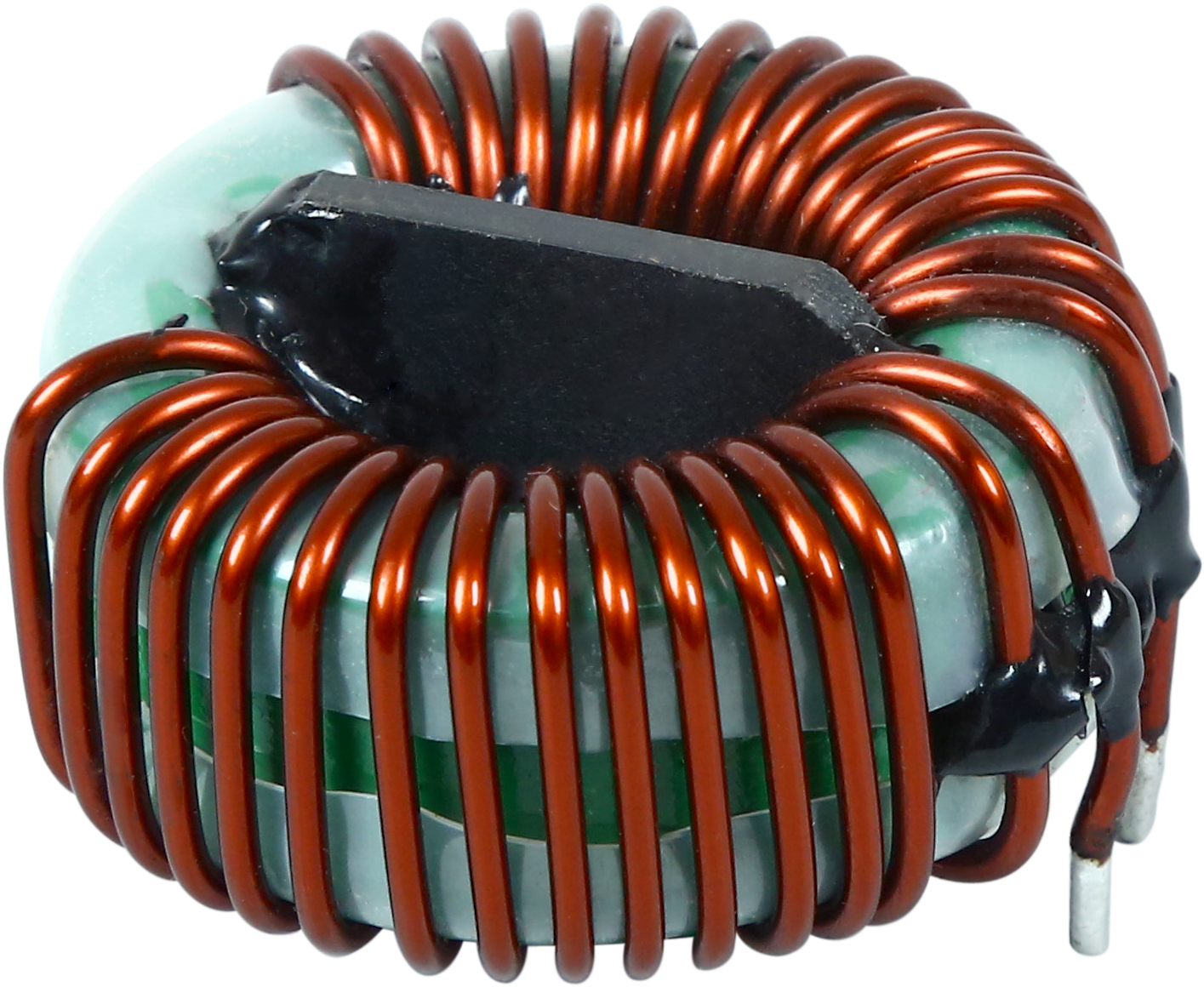

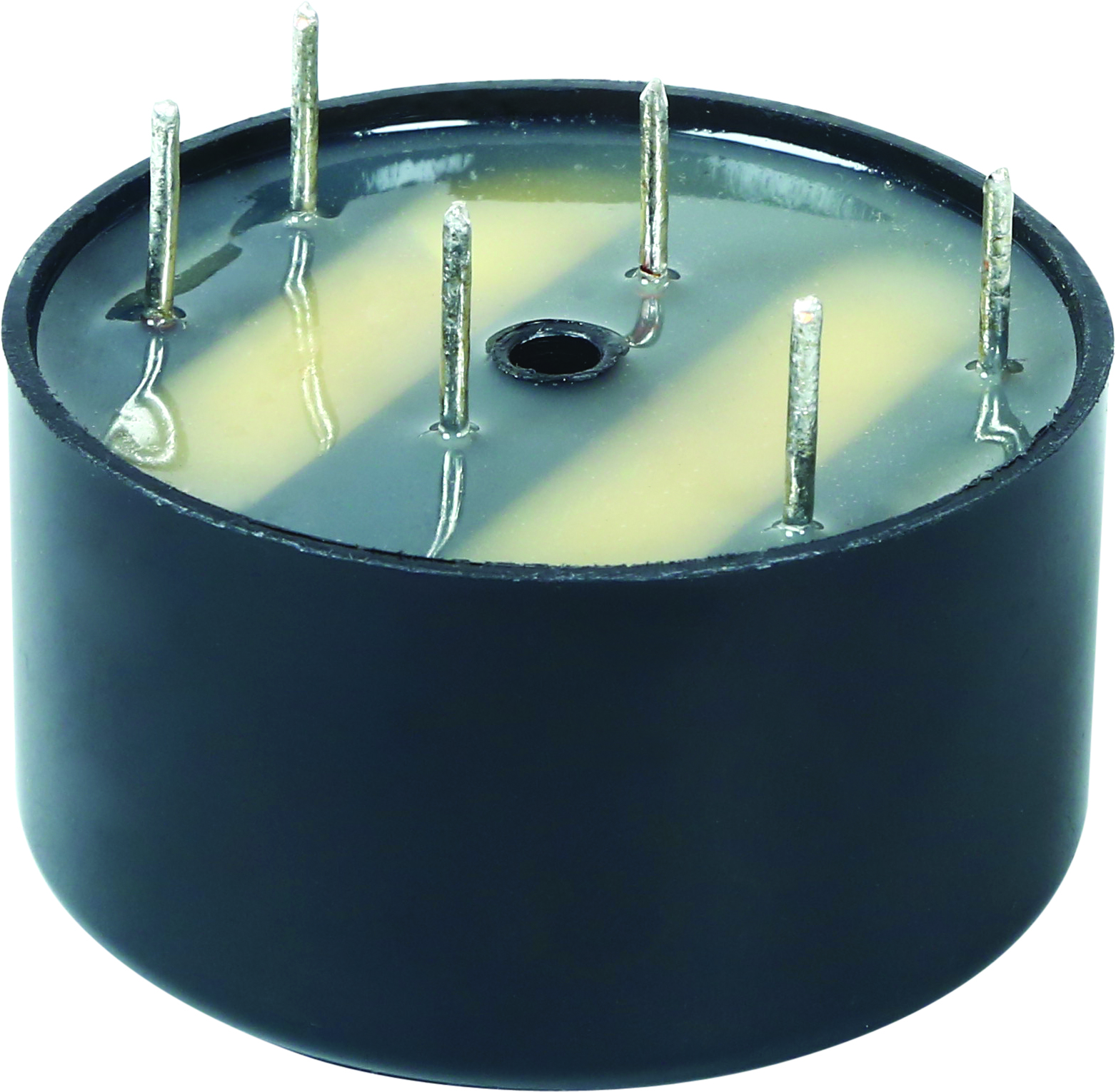

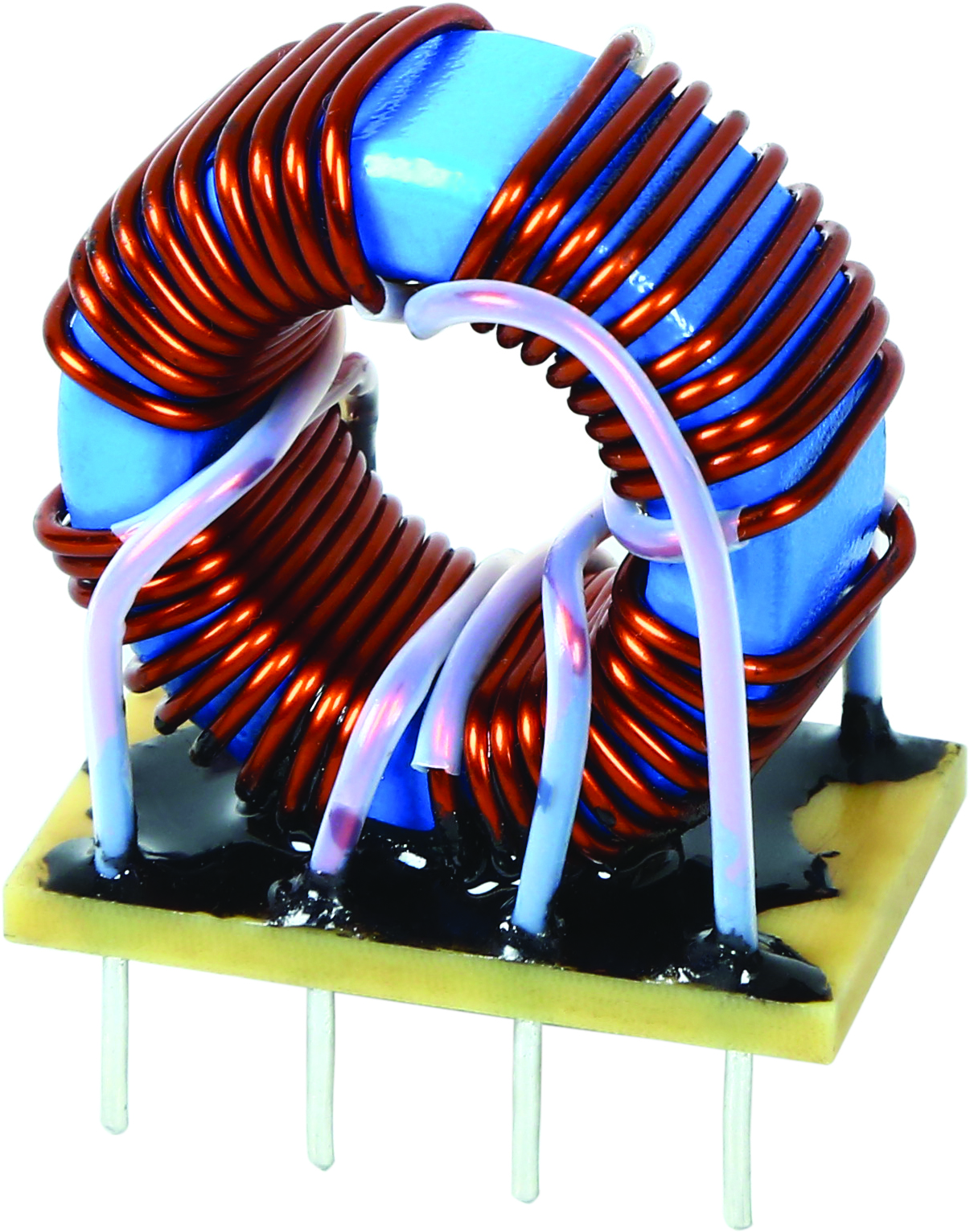

Common Mode Chokes (2-Phase And 3-Phase)

    • Available From 0.1A To 40A Current Rating
    • Special Compact Designs Optimized For Highest Inductance At Highest Possible Current
    • Designed To Ensure Low Temperature Rise
    • Precisely Balanced For Symmetrical As Well As Asymmetrical Interference Suppression
    • Low Stray Inductance
    • Available In 2-Phase And 3-Phase Voltage Ratings
    • Also Available In Dual Choke And Quad Choke Configurations For Data And Signal Lines Applications
    • Available In Various Core Material – Ferrite-MnZn, Ferrite Ni-Zn, Nanocrystalline
    • Impedance And Insertion Loss Data Available On Request
    • All Used Plastic Material Is UL94V-0
    • Available In Plastic Housings With Vacuum Potting
    • Available In THT, SMT, THR Profiles
    • Available In Various Packaging Options – Foam Tray, Blister Tray, Blister Tubes
    • Customized Designs Only

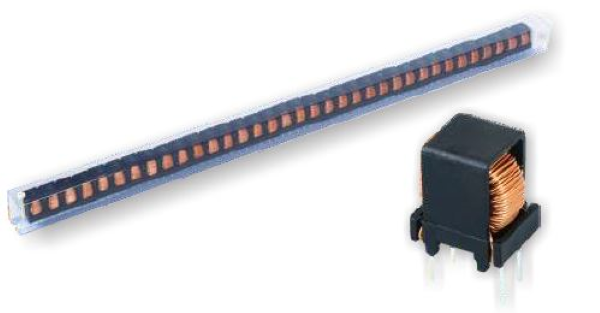

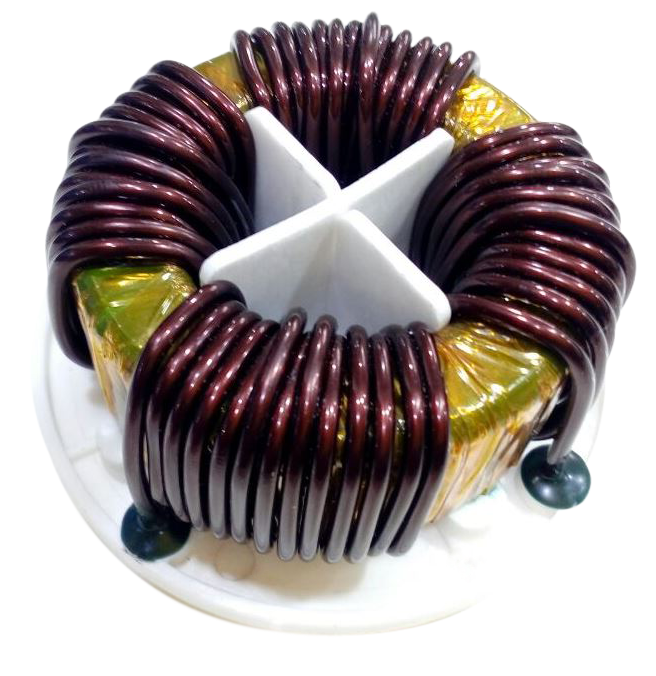

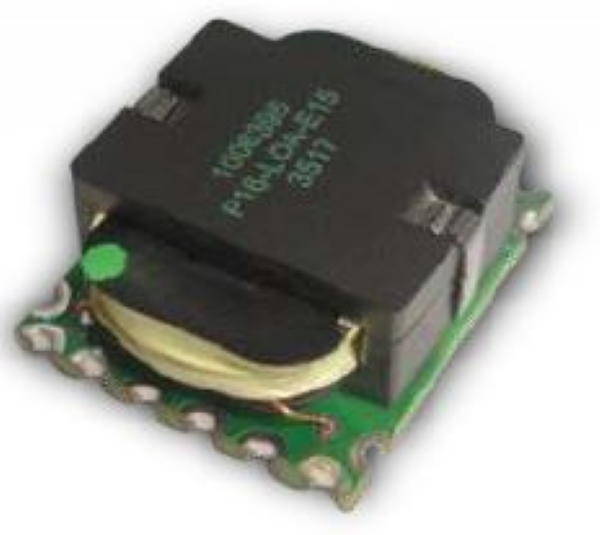

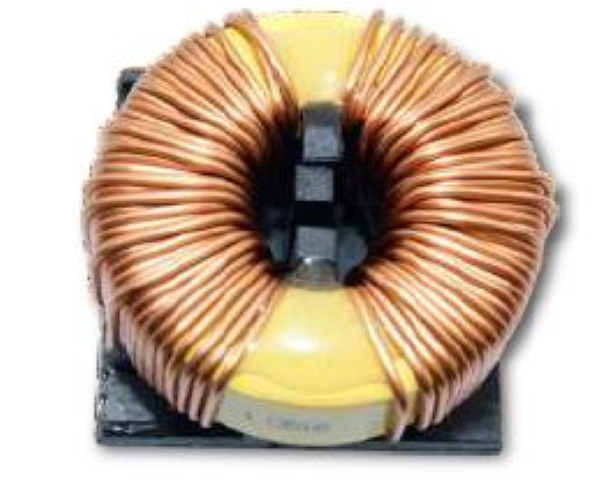

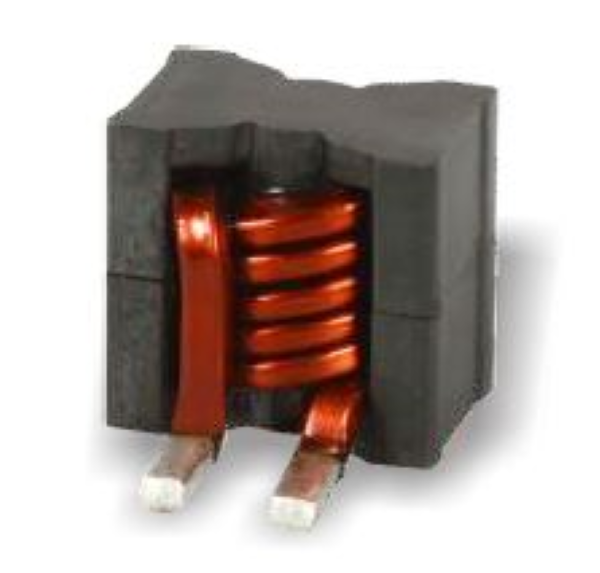

Chokes For Special Applications

    We Always Welcome New Challenges In Design Requirements From Our Customers. We Offer Custom Design Solutions For Special Appllications Using

    • Special Core Materials
    • Special Mechanical Dimensions
    • Special Packaging
    • Special PCB-Mountings
    • Special Winding Wires
    • Special Winding Constructions
    • Special Plastics
    • Our Experience Of Over 2 Decades
